PTTD: Why Your Arch Is Collapsing and What Custom Orthotics Can Do About It

There is a tendon running along the inside of your ankle - relatively small, largely unappreciated until something goes wrong - that is single-handedly responsible for maintaining your arch every time you take a step. It is called the posterior tibial tendon, and when it starts to break down, the consequences are slow, cumulative, and eventually structural. The arch flattens. The ankle rolls inward. The heel drifts outward. What begins as a nagging inner ankle ache can progress, over months or years, into a permanently deformed foot that is difficult to treat without surgery.

This process is called posterior tibial tendon dysfunction, or PTTD - and it is the most common cause of adult-acquired flatfoot deformity. Understanding why it happens and how it progresses is the first step toward stopping it before it becomes irreversible.

What the Posterior Tibial Tendon Actually Does

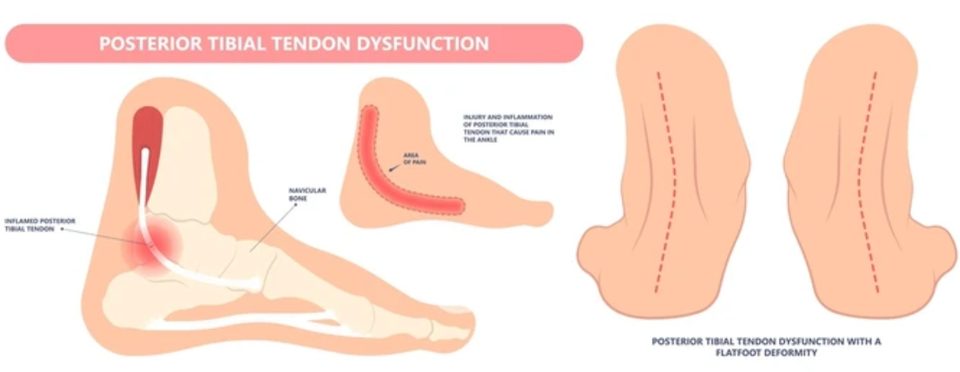

The posterior tibial tendon originates in the calf muscle, runs behind the inner ankle bone (the medial malleolus), and fans out to attach at multiple points along the inner midfoot and arch. Its job is active and constant: every time your foot leaves the ground and pushes off, the posterior tibial tendon fires, lifting the arch, locking the midfoot joints, and transforming the flexible foot into a rigid lever for efficient propulsion.

Without it functioning properly, the arch cannot maintain its shape under load. The midfoot joints - normally locked during push-off - begin to collapse. The calcaneus (heel bone) rolls outward. The forefoot begins to drift. What started as a structural problem in a single tendon becomes a progressive deformity of the entire hindfoot.

Why Overuse Is the Primary Culprit

PTTD is predominantly a condition of overuse and cumulative microtrauma. Unlike an acute tendon rupture - which happens in a sudden, traumatic event - PTTD typically develops through a slow, repetitive process in which the tendon sustains small injuries faster than it can repair them.

This happens most commonly in middle-aged adults who spend long hours on their feet, people who have experienced rapid weight gain, runners who increase mileage too quickly, and individuals who have underlying structural risk factors such as a pre-existing low arch or midfoot hypermobility. Women over 40 are disproportionately affected, though PTTD occurs across all demographics.

The tendon's blood supply is a key vulnerability. There is a zone approximately 1-2 centimeters below the medial malleolus where the posterior tibial tendon is relatively avascular - meaning it receives limited blood flow. This is exactly where most tendon degeneration begins, because poor circulation means poor repair capacity. Repetitive loading in this hypovascular zone creates cumulative damage that the tendon cannot fully heal between episodes of stress.

Over time, the tendon fibers become disorganized and weak. The tendon elongates. It loses its ability to generate sufficient force to support the arch - and the deformity begins.

The Four Stages of PTTD

Podiatrists classify PTTD into four stages based on the severity of tendon damage and the degree of structural deformity. Understanding where a patient falls within this classification directly determines treatment.

Stage I is the earliest phase. The tendon is inflamed and mildly degenerated but has not yet elongated significantly. The arch is preserved. The patient experiences inner ankle pain and swelling, particularly with activity, but the foot structure looks relatively normal on exam. This is the ideal stage to diagnose and treat.

Stage II involves significant tendon degeneration with elongation, leading to a flexible flatfoot deformity. The arch is clearly reduced when standing, but the deformity can still be corrected passively - meaning a clinician can manually reposition the heel and arch into a neutral position. Patients may notice their shoes wearing unevenly and may feel fatigue with walking. The single-heel-rise test - standing on one foot and attempting to rise onto the toes - is painful or impossible in Stage II.

Stage III represents a rigid flatfoot. The joints that have been chronically stressed under abnormal load have begun to develop arthritis and lose their mobility. The deformity can no longer be passively corrected. At this stage, conservative measures become far less effective because the structural changes are fixed.

Stage IV involves involvement of the ankle joint itself, with the deltoid ligament - which stabilizes the ankle - beginning to fail under the chronic valgus stress. The ankle tilts, creating a complex deformity that is substantially more difficult to address surgically.

The "Too Many Toes" Sign and Other Clues

PTTD has several characteristic clinical findings that an experienced podiatrist will recognize immediately. The most classic is the "too many toes" sign - when viewing a patient from behind, more toes are visible on the affected foot than on the normal foot, because the forefoot has abducted (spread outward) as the arch collapses. This sign, combined with an asymmetric flatfoot that has developed in adulthood, is strongly suggestive of PTTD.

The single-heel-rise test is both a diagnostic tool and a measure of severity. A patient with a healthy posterior tibial tendon can stand on one foot and rise smoothly onto their toes, the heel inverting slightly as they do. In PTTD, this movement is painful, weak, or impossible - because the tendon cannot generate the force required. Many patients with Stage II PTTD report that they "used to be able to do that" but can no longer manage it.

Pain and swelling along the inner ankle and arch, worsening over the course of a day on your feet, is the signature symptom. Many patients describe a deep ache rather than a sharp pain, and note that the discomfort is worst during push-off activities - climbing stairs, walking on inclines, or prolonged standing.

Diagnosis: What Dr. Golan Looks For

Diagnosing PTTD accurately requires a combination of clinical examination and imaging. Dr. Golan begins with a thorough biomechanical evaluation - assessing foot posture both seated and standing, measuring arch height, evaluating ankle and subtalar joint range of motion, and performing provocative maneuvers including the single-heel-rise test and manual muscle testing of the posterior tibial muscle.

Weight-bearing X-rays are taken in the office to evaluate the degree of flatfoot deformity, assess for midfoot arthritis, and measure key angles including the lateral talometatarsal angle (Meary's angle) - a reliable indicator of arch collapse severity. Ultrasound imaging, also performed in-office, allows direct visualization of the posterior tibial tendon - its caliber, echogenicity, and any evidence of tearing, degeneration, or surrounding fluid - without radiation exposure and in real time as the tendon moves.

Custom Orthotics: The Cornerstone of Conservative Treatment

For Stage I and Stage II PTTD, the single most important conservative intervention is a properly fabricated custom foot orthotic. This is not a cushioned insole from a pharmacy shelf - it is a physician-prescribed, laboratory-fabricated device that controls the position of the heel, midfoot, and arch with precision.

The goal of the orthotic in PTTD is to hold the subtalar joint (the joint just below the ankle) in a neutral or slightly inverted position, reducing the internal valgus stress on the posterior tibial tendon by limiting how far the heel can roll outward. When the heel is held in a corrected position, the tendon does not have to work as hard to stabilize the arch - it functions in its mechanically advantaged position, and the cumulative microtrauma that drove the initial degeneration is substantially reduced.

A custom PTTD orthotic is distinct from a standard functional orthotic in several important ways. It typically features a deep heel cup (to control calcaneal eversion), a medial heel and arch post (to elevate and support the medial longitudinal arch), and may incorporate a medial flange or "UCBL" (University of California Biomechanics Laboratory) style shell for more aggressive hindfoot control in moderate-to-severe cases.

The difference between a custom device and an over-the-counter insole is significant. Generic arch supports are built to statistical norms - they address the average foot, not your foot. In PTTD, the biomechanical correction needs to be specific to your individual subtalar axis, arch height, and deformity pattern. An orthotic that provides inadequate control will not offload the tendon effectively, and the deformity will continue to progress even while the patient is wearing it.

In early-stage PTTD, immobilization in a walking boot may be used for a short period (typically 4-6 weeks) to reduce acute tendon inflammation before transitioning to an orthotic. This is particularly appropriate when there is significant swelling and pain at rest. Once the acute phase has settled, a custom orthotic becomes the primary tool for long-term management.

Physical Therapy and Strengthening

Custom orthotics control the position of the foot passively, but addressing the strength of the muscles that support the arch actively is equally important for long-term outcomes. Physical therapy for PTTD focuses on strengthening the posterior tibial muscle itself through resisted inversion exercises, along with the calf complex (gastrocnemius and soleus), which is a major contributor to arch support during the propulsive phase of gait.

Eccentric heel-drop exercises on a step are the gold standard for tendon remodeling in chronic tendinopathies, including PTTD. Stretching the Achilles tendon is also essential - a tight Achilles places excessive stress on the midfoot during push-off, dramatically increasing the load on the posterior tibial tendon. Most patients with PTTD have measurable Achilles tightness that must be addressed in parallel with the tendon-specific rehabilitation.

Regenerative Therapy for Tendon Healing

When tendon degeneration has progressed beyond simple inflammation - when the tissue has become disorganized, hypovascular, and structurally compromised - passive rest and orthotics alone may not be sufficient to drive genuine biological repair. This is where our Dual-Action Regenerative Therapy Protocol - combining radial shockwave therapy with Class IV REMY laser - becomes a powerful adjunct to conservative care.

Radial shockwave creates a controlled biological stimulus that re-triggers the tendon's repair cascade, stimulating new collagen synthesis and improving local blood flow in the hypovascular zone where PTTD typically originates. The REMY Class IV laser reduces inflammation, enhances cellular metabolism, and accelerates tissue oxygenation. Together, applied in the right sequence and frequency, they address PTTD at the biological level - not simply masking pain, but supporting the structural repair that orthotics and physical therapy require to succeed.

A Note on Cortisone

Cortisone injections are commonly used for many foot and ankle conditions, but they require careful consideration in PTTD. While cortisone is highly effective at reducing acute inflammation, repeated injections in or around a degenerated tendon carry a real risk of further weakening the already-compromised tissue, potentially accelerating the progression of the condition. Dr. Golan uses cortisone selectively and conservatively in PTTD - never as a routine treatment and always with a clear clinical rationale and awareness of the structural context.

When Surgery Is Required

Conservative management - orthotics, physical therapy, regenerative therapy, activity modification, and appropriate footwear - is effective for the majority of Stage I and Stage II PTTD cases when initiated early. But in patients who present with advanced Stage II, Stage III, or Stage IV disease, or who have failed a thorough conservative program, surgical reconstruction becomes necessary.

The surgical approach for PTTD varies by stage. For flexible deformities (Stage II), procedures typically involve tendon debridement or augmentation (transferring a neighboring tendon - usually the flexor digitorum longus - to reinforce the posterior tibial tendon), combined with bony procedures to correct the alignment: a medializing calcaneal osteotomy (shifting the heel inward) and/or a lateral column lengthening to restore the arch. For rigid deformities with arthritis (Stage III-IV), joint fusion procedures - including triple arthrodesis - are often necessary to stabilize a foot that can no longer be corrected through soft-tissue work alone.

Dr. Golan performs minimally invasive foot procedures where appropriate and will discuss all surgical options in detail if conservative measures have been exhausted. For most patients, however, the goal is to never reach that conversation - because early intervention with the right orthotic, the right rehabilitation plan, and the right regenerative support can stabilize PTTD and allow the tendon to function indefinitely without surgical reconstruction.

When to See Dr. Golan

If you have noticed any of the following, it is worth scheduling an evaluation - the earlier PTTD is diagnosed, the more options you have:

• Pain, swelling, or tenderness along the inner ankle or arch, especially with walking or prolonged standing
• Your arch appears lower or flatter than it used to be
• Difficulty rising onto your toes on one foot
• Your foot appears to be "rolling inward" or your shoe is wearing down excessively on the inner edge
• A new flatfoot that has developed in adulthood on one side only

PTTD is a progressive condition - it does not improve with time if the underlying biomechanical stress is not addressed. But caught in Stage I or Stage II, the vast majority of patients can be successfully managed conservatively, maintaining a functional, pain-free foot without surgery.
